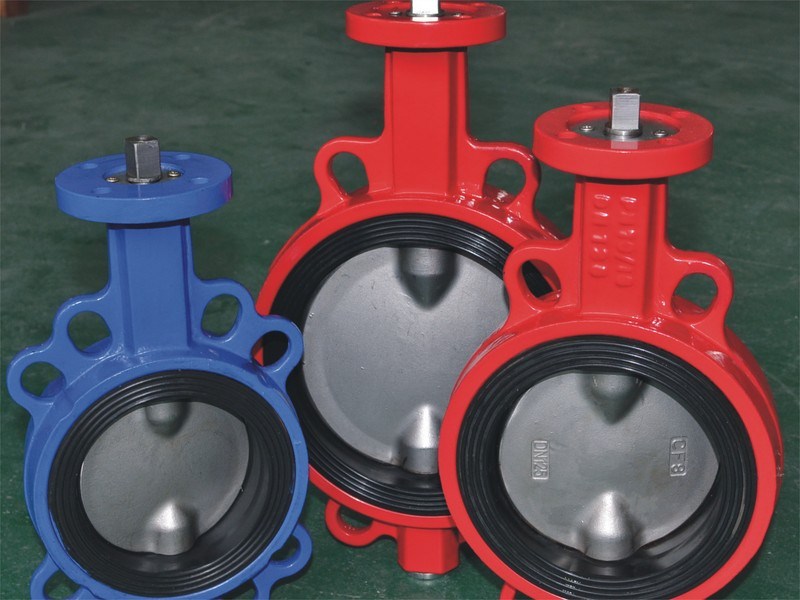

Wafer Concentric Butterfly Valve

The InterValve Wafer Concentric Butterfly Valves is designed to maintain a seal against bi-directional pressure differential to prevent backflow in systems
OnLine Service
Whatsapp Skype Online PDF Download
Flange Concentric Butterfly Valve Lug Concentric Butterfly Valve
Description
The Wafer Concentric Butterfly Valves is designed to maintain a seal against bi-directional pressure differential to prevent backflow in systems designed for unidirectional flow. It accomplishes this with a tightly fitting seal, i.e., gasket, o-ring, precision machined, and a flat valve face on the upstream and downstream sides of the valve, valves have threaded inserts at both sides of the valve body. This allows them to be installed into a system using two sets of bolts and no nuts. The valve is installed between two flanges using a separate set of bolts for each flange. This setup permits either side of the piping system to be disconnected without disturbing the other side.

InterValve Wafer Concentric Butterfly Valves are with main Features as below:
» ISO 5752, BS 5155, API 609, MSS-SP-68, ASME B16.10, ASME B16.5, DIN 3202
» Materials: Cast Iron and Ductile Iron
» Pressure Ratings: ANSI 150#, PN10, PN16
» Size Ranges: 2" to 48"-50mm to 1200mm (Larger sizes upon request)
» Ends Connections: Wafer
» Optional Seatings: Resilient NBR, EPDM, VITON

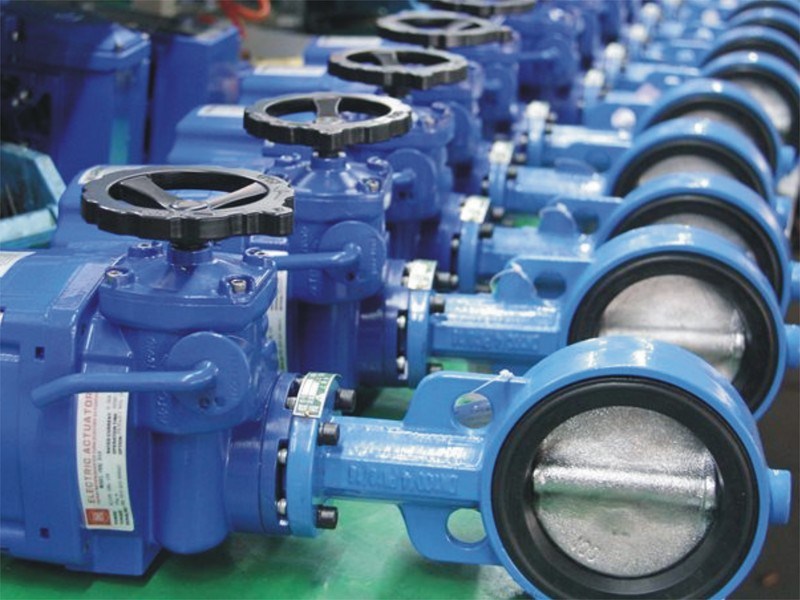

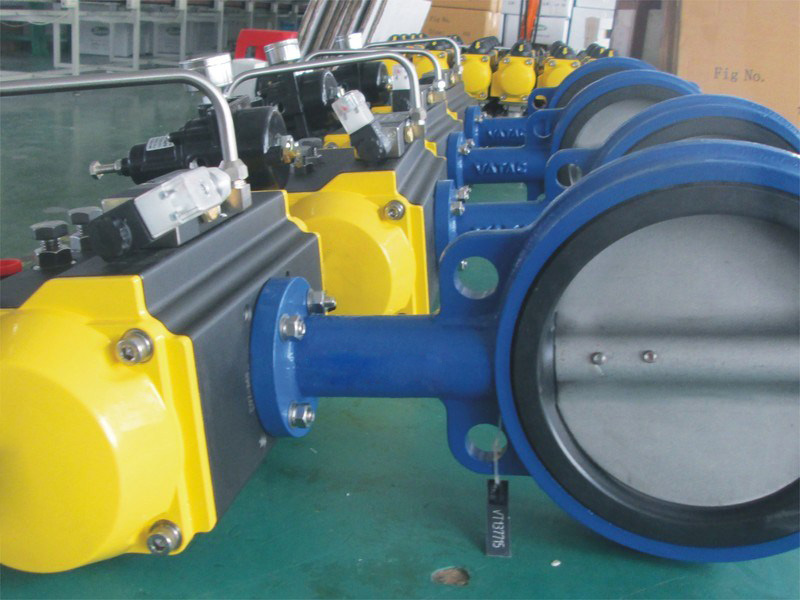

» Actuations: Manual, Pneumatic, Electric, Hydraulic (Counterweight) & Electro-hydraulic
